ProductS Recovery Winches

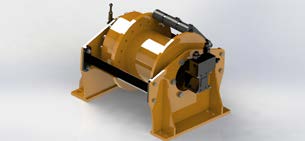

IRB-W15000

Max. Working Pressure 175 Bar
Pump Flow 75 lt/min
Rope Diameter 20 mm
Max Rope Capacity 65 m.
Motor Displacement 100 cc.
Brake Multidisc Brake
Free Pulling
Gear Train Planetary Gear

Rope Winding Layer n 1 2 3 4 5
Pulling Capacity daN 15000 12300 10650 9550 8500
Rope Winding Speed m/min 5.4 6.2 7.0 7.9 9.0
Total Rope on the drum m. 9.8 21.0 33.7 48.0 60.0

PERFORMANCE CHARTS AT THE 1ST LAYER
