ProductS Recovery Winches

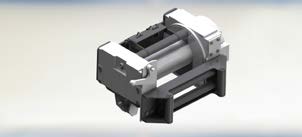

IRB-W10000

Max. Working Pressure 175 Bar
Pump Flow 75 lt/min
Rope Diameter 10 mm
Max Rope Capacity 80 m.
Motor Displacement 130 cc.
Brake Multidisc Brake
Free Pulling
Gear Train Planetary Gear

Rope Winding Layer n 1 2 3 4 5
Pulling Capacity daN 10000 8200 7700 6200 5500
Rope Winding Speed m/min 5.7 6.7 7.6 8.5 9.4
Total Rope on the drum m. 11.4 25.2 41.3 60.0 80.0

PERFORMANCE CHARTS AT THE 1ST LAYER
